Elder care SOLUTIONS

Smart Home Manager with NB-IoT module

Elder care is a flexible smart home manager  with NB-IoT
module to satisfy the needs of different families.

  • SMART REMINDER
  • MOTION DETECT
  • DANGEROUS ALARM
  • CHASING MONITORING

SIX IN ONE SET PRODUCTS

smart home set-texts

With this elder care solution,
it could help to :

*

*


*


*


*

Ensuring the physical health and home safety of elderly people.

Analyze the activities and physical health of elder via various sensing methods and data analysis.

Provide seamless indoor and outdoor technical means to track the safety of the elder throughout the journey.

Prevent trailing into the room and prevent theft via devices’data coordination.

Link with neighborhood committees and health agencies to detect physical abnormalities of the elderly as early as possible.

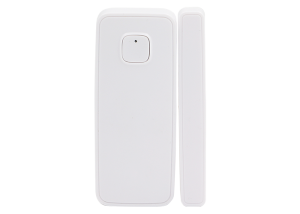

Adopt NB-IOT uplink channel, in line with operator network standards

* Switching event report period is 24 hours, heartbeat period is 8 hours
* Door not closed timeout alarm: 5 minutes (can be set)
* Provide alarm and low battery SMS and APP push notifications
* On / off status, low battery light indication
* SIM card specifications: Nano card slot
* Power supply and standby: 2 AA batteries, standby ≥ 2 years
(open and close the door ten times a day to report)
* Working environment: working temperature -20 ℃ ~ + 50 ℃ working humidity <95%
* Appearance size: large 95x40x20mm / small 95x14x20mm, weight 80g

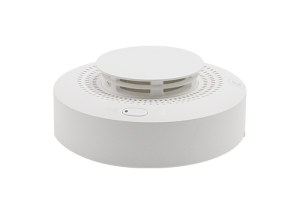

Adopt NB-IOT uplink channel, in line with operator network standards

* Adopt photoelectric smoke sensor, support reporting of 1 ~ 8 smoke density levels
* Supports three typical environment settings: smoke-free area, ordinary area and smoked area
* Built-in high-precision temperature and humidity sensor, detection accuracy is 0.1 degree
* Provide alarm and low battery SMS and APP push notifications
* Rotary base buckle design for easy maintenance and battery replacement
* 1 CR123A high capacity battery, typical working time> 18 months
* SIM card specifications: Nano card slot

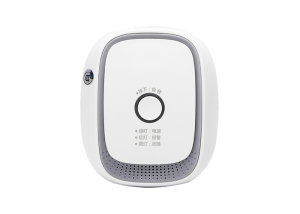

Adopt NB-IOT uplink channel, in line with operator network standards

* Built-in combustion type combustible gas probe, measuring range is 0 ~ 100% LEL
* Suitable gas type: methane type Alarm concentration: 7% LEL
* Alarm method: sound and light alarm + network alarm / alarm sound: ≥75dB response time: ≤30sv
* Provide alarm and low battery SMS and APP push notifications
* SIM card specifications: Nano card slot
* Working temperature / humidity: 0 ℃ ~ 55 ℃ / ≤95% RH
* Wall-mounted installation, using external 220V power supply
* Probe dimensions are 100.5X80X38.5mm and weight is 153g

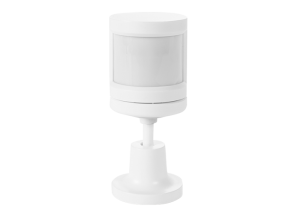

Adopt NB-IOT uplink channel, in line with operator network standards

* Infrared + microwave dual detector
* Human activity monitoring mode: Heartbeat cycle is 8 hours, daily activity report is reported
* Anti-intrusion monitoring mode: 8-hour heartbeat cycle, real-time alarm
* Detection angle> 120 degrees, detection distance 3-6 meters (adjustable)
* Detectable object size, accuracy range> 50cm
* Provide alarm and low battery SMS and APP push notifications
* SIM card specifications: Nano card slot

Adopt NB-IOT uplink channel, in line with operator network standards

* Built-in GPS module, support GPS outdoor positioning / LBS indoor positioning
* Built-in G-Sensor, support anti-move monitoring;
* Supports three reporting modes: ordinary reporting, fence and tracking, the system automatically switches
* Support one-click help
* Support APP to issue fence area, support multi-fence setting;
* SIM card specifications: Nano card slot
* Built-in 750mAH lithium battery
* USB charging, normal reporting working time> 10 days, tracking> 4 hours * hours;
* Appearance size: 54.5×84.5x7mm, weight 30g
