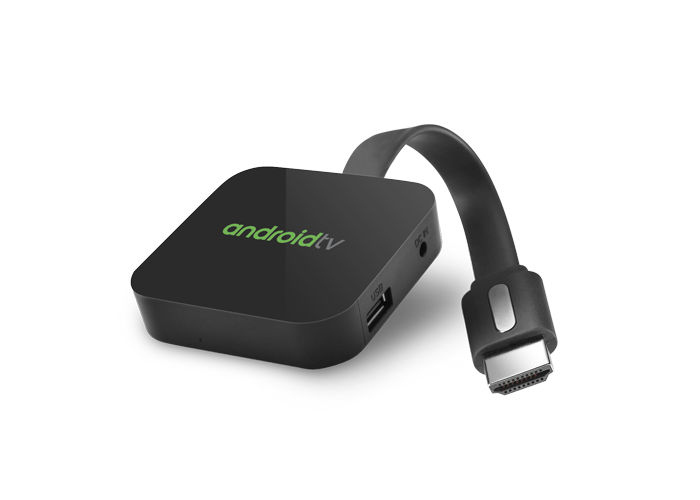

IoT dongle with Amlogic S905Y2 based on androidtv™ 9.0/10.0 which support zigbee gateway - DM33
IoT dongle DM33 is internet of things based on OTT dongle which is configured by S905Y2 chipset support Google androidtv OS. It supports HEVC/H.265 up to 4K resolution and dolby digital to provide a better audiovisual experience. Morever, it is built-in zigbee gateway to expand OTT dongle to controll all smart home products.
4K SPECIFICATION
4K SPECIFICATION
| HARDWARE | |
|---|---|
| CPU | Amlogic S905Y2 Quad-Core 64-bit Cortex-A53 up to 1.8GHz |
| GPU | Mali-G31 MP2 |
| DDR3 | DDRIII 1GB or 2GB |
| Flash | 8GB or 16GB EMMC |
| WiFi | 2×2 mimo wifi (802.11 ax wifi6 optional) |
| Bluetooth 4.0 | Included |
| SOFTWARE | |
|---|---|
| Android TV OS | Google androidtv os 9.0/10.0 |
| Video/Picture encode | UHD 4K 60fps HW decode,FHD 1080P 60fps,H.265 10-bit, H.264,VC-1,MPEG1/2/4 AVS+,VP8/VP9 HW decode |
| Audio decode/encode | MP3,AAC,WMA,RM,FLAC,OGG,AC-3, Dolby |
| Language | Multi-language |
| DRM | PlayReady/Widevine/HDCP 2.2 |
| Key features | Google PlayStore, ChromeCast Build-in, Google Voice search, PrimeVideo |
| IoT | |
|---|---|
| Zigbee(optional) | Built-in |
| I/O | |
|---|---|
| 1*HDMI 2.0 | Up to 4k resolution |
| 2*USB HOST | High speed USB 2.0 |
| 1*RJ45 | 10/100M RJ45 |
| 1*IR | Infrared extender |
| 1*Micro USB | Power supply 5V/2A |
| ACCESSORIES | |
|---|---|
| Gift box | √ |
| Power cable | √ |
| HDMI adapter cable | √ |
| Bluetooth remote control | √ |
| User Manual | √ |
