OPS-compliant digital signage player with Android OS which supports educational smart class perfectly.

Model No.: DM29

Features

  • - Standard 80pin OPS interfaces with Android AOSP 9 OS, perfect adapt to any of whiteboard products.
  • - PCI-E 4G interfaces built-in(4G Lte), supports 2.4G/5G dual band Wi-Fi.
  • - Android OS customization supported, all the root API port can be shared to support customer’s application development.

Configurations

  • Amlogic S905X3 Quad Core Cortex-A55
  • ARM Mali-G31 MP2, OpenGL ES 3.2, Vulkan 1.0, OpenCL 2.0
Specification

Main Products in 2022

CPU Amlogic chipset S905X3 quad core Cortex-A55
GPU Dual core Mali-G31 MP2
OS Android AOSP 9
RAM/ROM 4GB / 32GB
HDMI Out Support 1080P@120Hz，4kx2k@60Hzoutput
USB port USB 3.0 x2
Network Dual band WiFi，support 3G/4G，1000M Ethernet and POE
Memory expansion TF Card up to 64GB (M.2 interfaces expansion)
Clock Real time clock，Support timing switch on/off

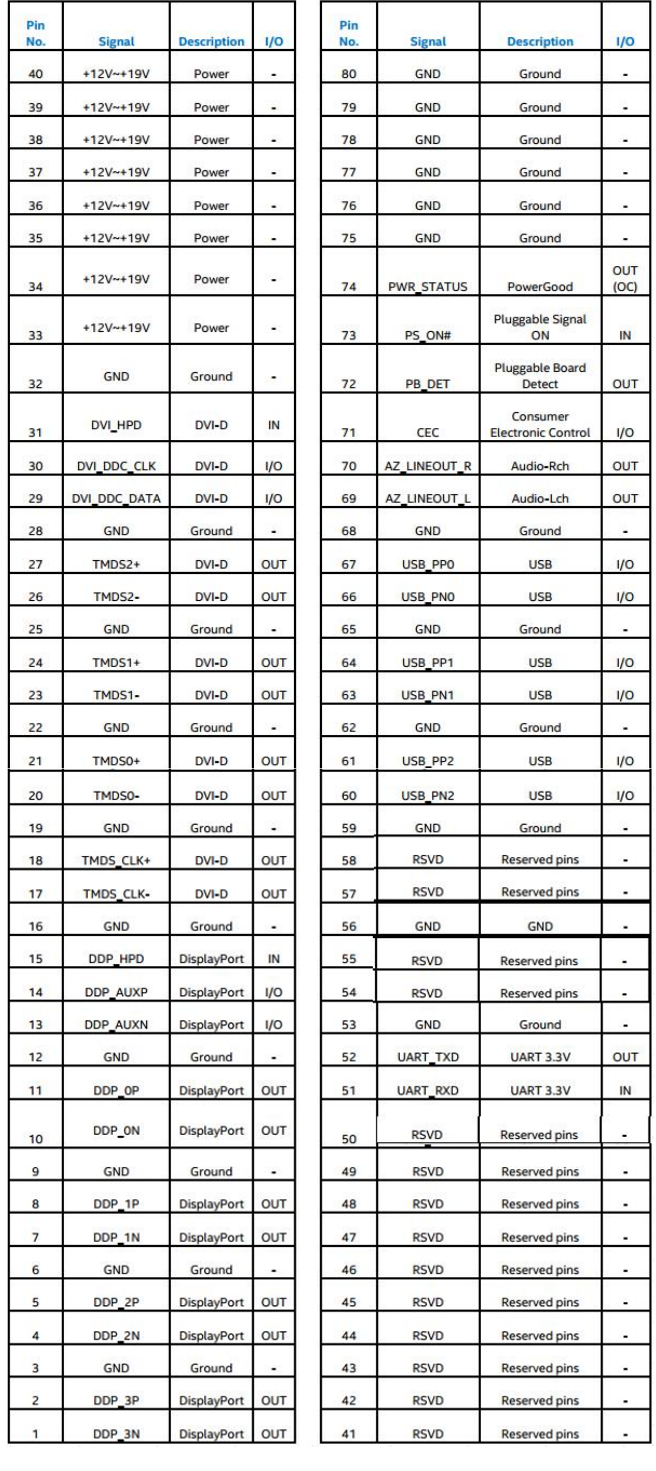

OPS 80 pins specification
